Multiple Various Air Handling Equipment

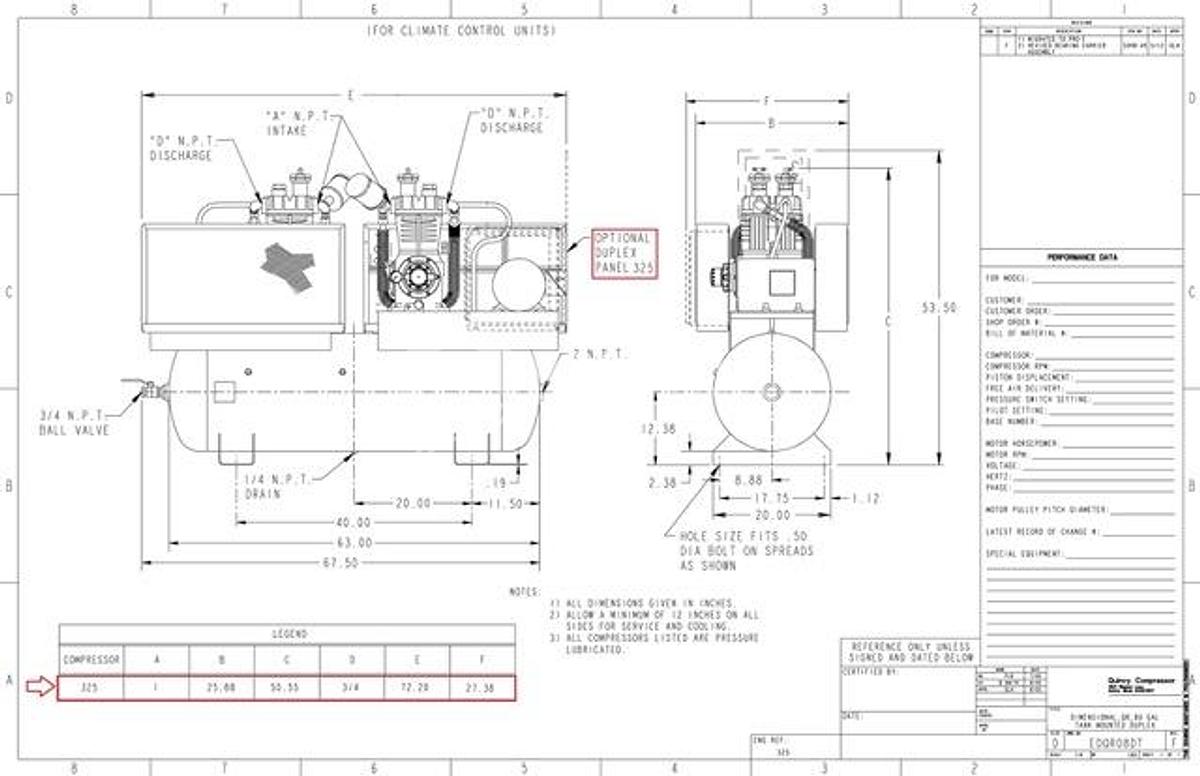

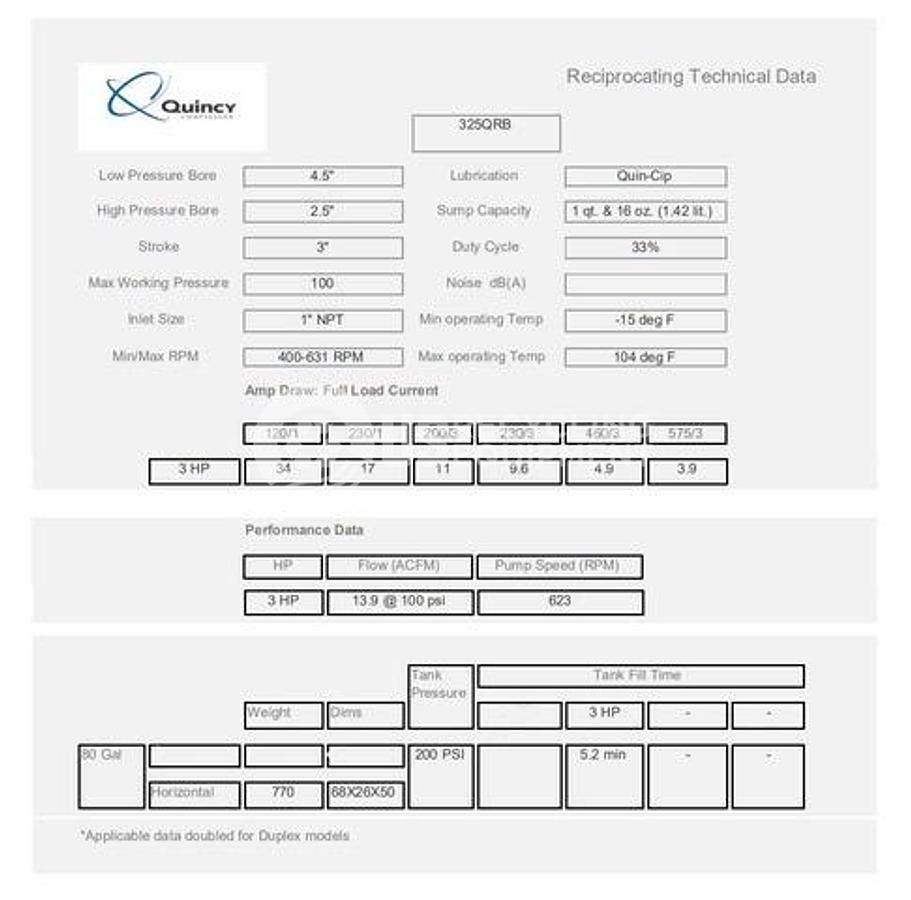

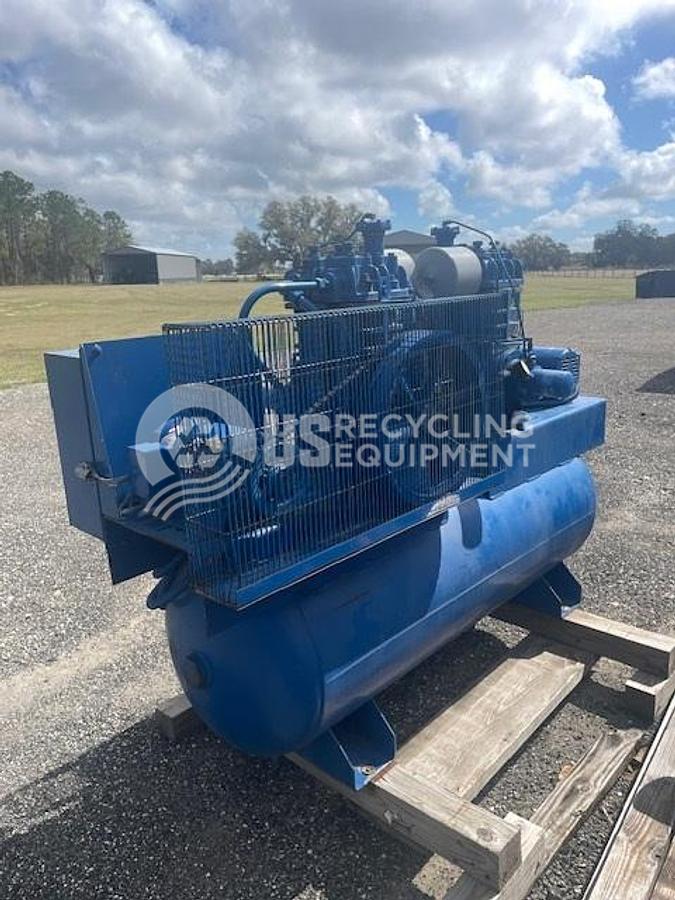

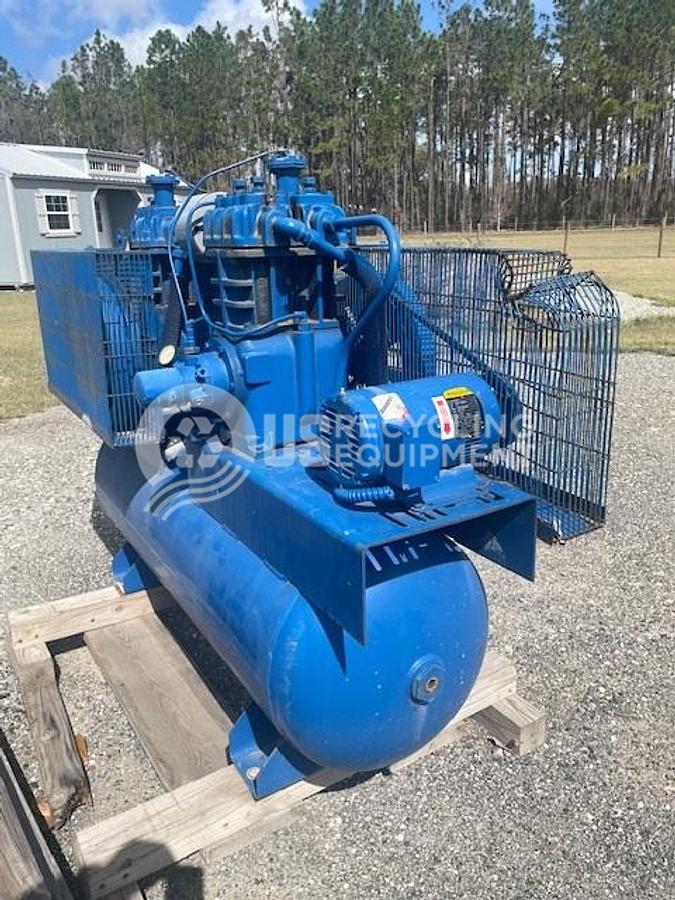

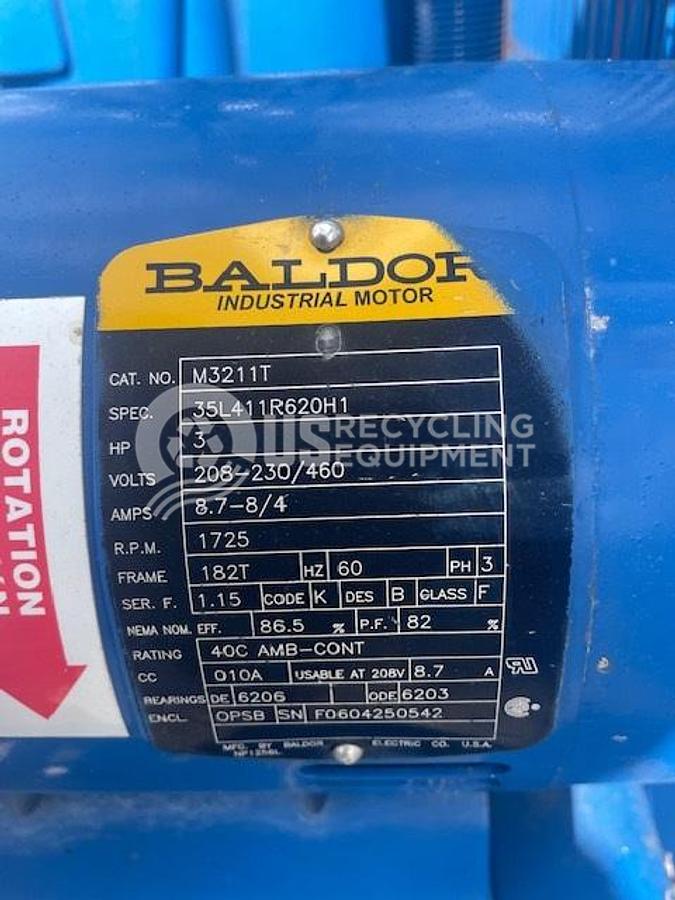

This offering includes a range of used air handling equipment, spearheaded by the 2006 Quincy 325QRB Duplex Reciprocating Air Compressor. The unit is engineered for climate control applications, featuring a flow capacity of 27.8 ACFM at 100 PSI for duplex operations, and 13.9 ACFM for single compressor use. The compressor operates at 623 RPM and is mounted on an 80-gallon horizontal tank capable of withstanding pressures up to 200 PSI. Tank fill times are notably efficient, clocking in at 5.2 minutes for single and 2.6 minutes for duplex compressor operation. The system is powered by two Baldor 3HP industrial motors. These motors run at 1725 RPM with a power rating of 3 HP, and support voltages ranging from 208-230/460V. With a 60 Hz frequency and a three-phase design, these motors ensure robust operational performance while maintaining an 86.5% NEMA nominal efficiency. Additionally, the package includes a Manchester 80-Gallon Horizontal Air Receiver Tank, certified to handle a maximum allowable working pressure of 200 PSI at 650°F. Constructed with a shell thickness of .153 inches, this tank provides reliable air storage. Overall dimensions of the equipment measure 72 inches in length, 28 inches in width, and 51 inches in height, with a total weight of 1050 lbs.ーズ
