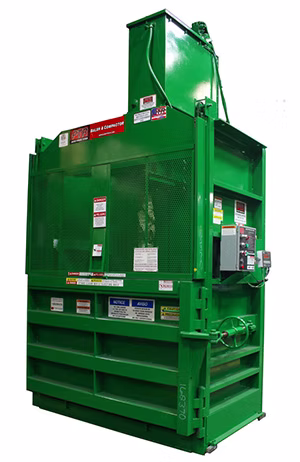

2007 PTR 7200-IHD-7 Vertical Baler

The 2007 PTR 7200-IHD-7 Vertical Baler is a robust machine designed for efficient baling applications. It features a 7-inch cylinder and a 20 HP motor, capable of processing large volumes of material. The bale size is 72 inches wide, 42 inches deep, and 48 inches high, with a capability to produce bales weighing between 1,200 to 1,800 lbs depending on the material density. The baler operates on a 3-phase power supply of 230/460V and has an average cycle time of 54 seconds, delivering a platen force of 100,060 lbs at a system pressure ranging from 2,600 to 2,950 PSI. For installation, the baler requires a minimum ceiling clearance of 156 inches to ensure safe operation, accommodating structural deflection and hose movement. The front feed opening dimensions are 72 inches wide and 26 inches high, and it requires sufficient frontal access for efficient loading. Additionally, allowing 6 to 8 feet of clear floor space in front of the machine is essential for safe bale ejection onto a pallet jack or forklift. The overall dimensions of the baler are 90 inches in width, 53 inches in depth, and 152 inches in height, with a shipping weight of approximately 8,750 lbs. For further queries on delivery, installation, or financing, a quote can be requested, and more details are available upon inquiry about electrical and anchoring requirements for setup.
